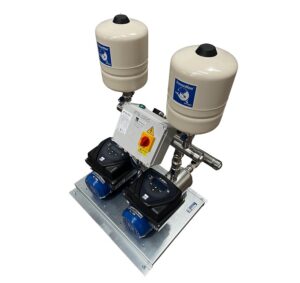

2GPEH 3-6 Duty / Stand-by Domestic Pressure Booster Pump Set 230/1/50

Contact us for your tailor-made price

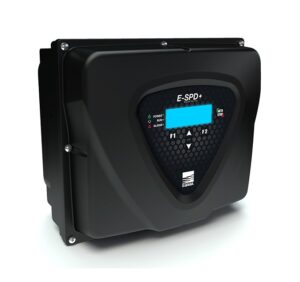

2GPEH 3-6 Twin pump variable speed Duty / Stand-by booster set incorporating WRAS approved stainless steel horizontal multi-stage pumps fitted with 0,9kW 230/3/50 motors and complete with motor mounted intelligent variable speed drive & pressure transducer, 2 no. 8 litre pressure vessels, pressure gauge, isolating valves for suction & delivery and non return valve fitted to delivery connected to common 1-1/2″ bsp(m) inlet & outlet stainless steel manifolds.

Sizing Information:

• The 2GPEH 3-6 set is designed to supply a constant discharge pressure of 4.5 bar for a property with the typical following outlets:
• Up to 2 main bathroom comprising bath, wash hand basin & WC
• Up to 3 En Suites comprising shower, wash hand basin & WC
• Kitchen with sink, washing machine & dishwasher.
• Calculated simultaneous water demand: 48 to 54 litres per min.

Features:

• 304 Stainless steel WRAS approved pumps.

• BMS Volt Free Contacts
• Automatic Cascade mode

• Option to operate in Duty / Assist operation to double the flow rate
• Dry run protection
• 304 Stainless steel manifolds and fittings
• Brass nickel plated WRAS approved ball valves
• Union fittings on suction and discharge for easy disassemble
• 2 x 8 litre WRAS approved pressure vessel
• Common steel base plate
• All wired, tested and programmed prior dispatch
