1GPEH 5-5HP Domestic Pressure Booster Pump Set 230/1/50

Contact us for your tailor-made price

1GPEH 5-5HP Single pump variable speed booster set incorporating WRAS approved stainless steel horizontal multi-stage pump fitted with 1,3kW 230/3/50 motor and complete with motor mounted intelligent variable speed drive & pressure transducer, 8 litre pressure vessel, pressure gauge, isolating valves for suction & delivery and non return valve fitted to delivery.

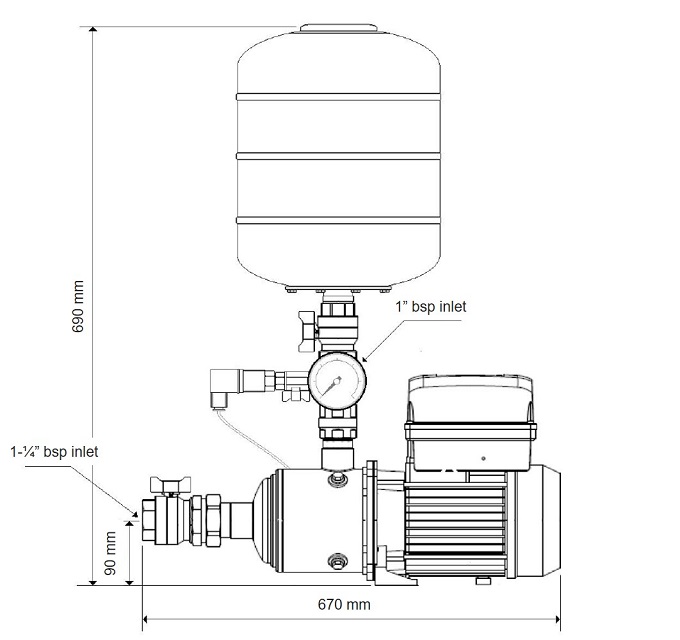

Pipe connections: 1 -1/4 ” bsp(f) inlet / 1″ bsp(f) outlet

Sizing Information:

• The 1GPEH 5-5HP set is designed to supply a constant discharge pressure of  4.5 bar for a property with the typical following outlets:
• Up to 4 main bathrooms comprising bath, wash hand basin & WC
• Up to 4 En Suites comprising shower, wash hand basin & WC
• Kitchen with sink, washing machine & dishwasher.
• Calculated simultaneous water demand: 72 litres per min.

Features:

• 304 Stainless steel WRAS approved pumps.
• BMS Volt Free Contacts
• Dry run protection
• Brass nickel plated WRAS approved ball valves
• Union fittings on suction and discharge for easy disassemble
• 8 litre WRAS approved pressure vessel
• All wired, tested and programmed prior dispatch
